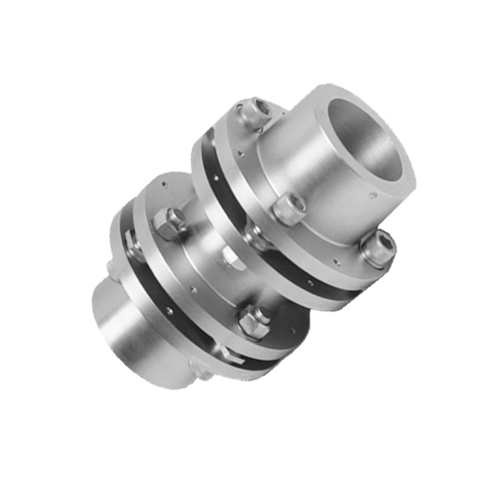

SJM Diaphragm CouplingIt Is A Precision Component With Excellent Performance In Industrial Transmission, Suitable For Scenarios With High Requirements For Transmission Accuracy And Stability.

Structurally, Its Core Consists Of Multiple Sets Of Stainless Steel Membranes, Which Are Connected To The Metal Halves At Both Ends Through High-strength Bolts. The Diaphragm Adopts A Thin Laminated Design, Which Can Compensate For Axial, Radial, And Angular Displacement Through Elastic Deformation. The Half Body Is Made Of High-strength Alloy Material To Ensure Rigidity And Torque Bearing Capacity. The Connecting Parts Are Precision Machined To Ensure Efficient Power Transmission.

In Terms Of Performance, The Transmission Efficiency Exceeds 99.8%, With Zero Backlash And Suitable For Medium To High Speed Operation. Temperature Resistance Range -80 ℃~300 ℃, Corrosion-resistant And Does Not Require Lubrication, With Low Maintenance Costs.

The Application Covers CNC Machine Tools, Servo Systems, Precision Pumps, Compressors And Other Equipment, Which Can Meet High-precision Control Requirements And Cope With Certain Power Transmission Tasks. It Is An Ideal Choice That Balances Reliability And Economy.
