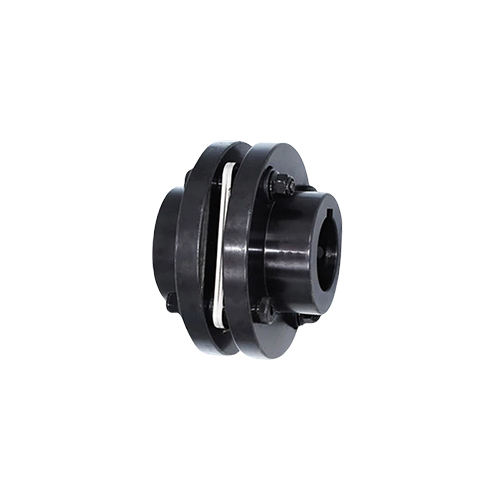

JMI Diaphragm CouplingIt Is A Reliable Precision Connecting Component In Industrial Transmission Systems, Suitable For Scenarios With High Requirements For Transmission Accuracy And Stability.

Structurally, It Uses Multiple Sets Of Stainless Steel Diaphragms As The Core Transmission Components, Connected To The Metal Halves At Both Ends Through High-strength Bolts. The Membrane Adopts A Thin Laminated Design, Which Has Good Elastic Deformation Ability And Can Effectively Compensate For Axial, Radial, And Angular Displacement Between The Two Axes, Reducing Additional Stress Caused By Installation Errors Or Equipment Operation Vibrations. The Half Body Is Made Of High-strength Alloy Material, Ensuring The Overall Rigidity And Torque Bearing Capacity. The Connecting Parts Are Precision Machined To Ensure Efficient Power Transmission.

In Terms Of Performance, The JMI Diaphragm Coupling Has A Transmission Efficiency Of Over 99.8%, No Rotational Clearance, And Can Accurately Transmit Motion And Torque, Adapting To Medium And High-speed Operating Environments. It Has A Wide Temperature Range, Can Work Stably At -80 ℃~300 ℃, And Has Good Corrosion Resistance Without Lubrication, Greatly Reducing Maintenance Costs.

In Terms Of Application, It Is Widely Used In CNC Machine Tools, Servo Motor Transmission Systems, Precision Pumps And Valves, Compressors And Other Equipment. It Can Meet The High-precision Control Requirements And Cope With Certain Power Transmission Tasks, Making It A High-quality Choice That Balances Reliability And Economy.
