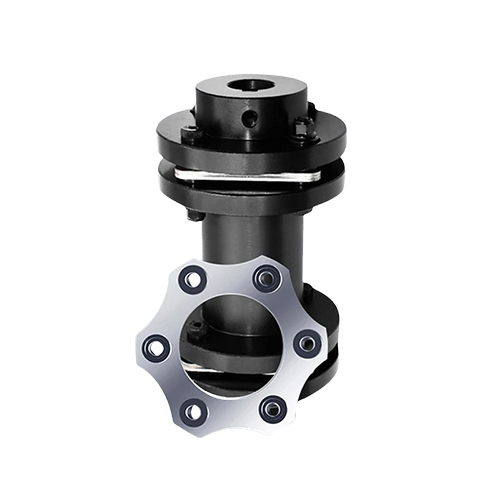

JMIIJ Diaphragm CouplingIt Is A Precision Transmission Component Optimized And Designed Based On The JMI Series, Which Is More Suitable For Industrial Scenarios With High Torque And High Stability Requirements.

Structurally, The Combination Of Stainless Steel Membrane And Metal Half Body Is Continued, But The Membrane Adopts A Thickened Laminated Design, With Each Group Composed Of More Thin Sheets, Which Enhances The Torque Bearing Capacity. The Two End Halves Are Made Of High-strength Alloy Forgings For Stronger Rigidity. The Connecting Parts Are Processed By Ultra Precision Grinding And Matched With Specially Designed High-strength Bolts To Ensure The Stability Of Power Transmission. The Elastic Deformation Range Of The Diaphragm Has Been Optimized To Compensate For Larger Axial, Radial, And Angular Displacements, Reducing Stress Concentration During Equipment Operation.

In Terms Of Performance, The Transmission Efficiency Remains Above 99.8%, The Zero Rotation Clearance Characteristic Remains Unchanged, And The Applicable Speed Range Is Wider. The Temperature Resistance Range Is Still -80 ℃~300 ℃, With Excellent Corrosion Resistance And No Need For Lubrication, Making Maintenance Convenient. Its Outstanding Advantage Lies In Its Larger Nominal Torque, Which Can Cope With Heavy Load Conditions.

In Terms Of Application, It Is Widely Used In Heavy-duty CNC Machine Tools, Large Compressors, Metallurgical Equipment, And High-power Servo Systems. While Ensuring High-precision Transmission, It Can Also Meet Long-term Stable Operation In Heavy-duty Environments, Making It An Ideal Choice For Balancing Strength And Accuracy.
