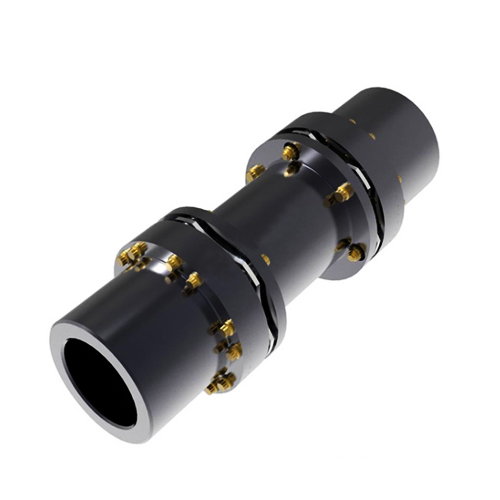

TAG Diaphragm CouplingIt Is A Highly Acclaimed Key Component In The Field Of Industrial Transmission, Commonly Used In Equipment And Systems With Strict Requirements For Transmission Accuracy, Stability, And Reliability.

From The Perspective Of Structural Design, The Core Component Of TAG Diaphragm Coupling Is A Diaphragm Made Of High-strength Stainless Steel Sheet. The Diaphragm Has Various Shapes, Commonly Hexagonal, Octagonal Or Integral. Multiple Sets Of Membranes Are Connected In A Staggered Manner Between The Two Halves Of The Coupling Using High-strength Bolts, And Each Set Of Membranes Is Composed Of Multiple Thin Plates Stacked Together. This Clever Structural Design Allows The Diaphragm To Rely On Its Own Elastic Deformation While Transmitting Torque, Effectively Compensating For Axial, Radial, And Angular Displacement Deviations Between The Two Axes. The Half Body Of The Coupling Is Usually Made Of High-strength Metal Materials Such As High-quality Steel Or Aluminum Alloy, Which Have High Rigidity And Strength, And Can Withstand Large Torque And Centrifugal Force. The Connection Between The Half Body And The Diaphragm Is Precision Machined To Ensure The Accuracy And Reliability Of The Connection, Enabling Efficient Transmission Of Torque From The Driving Shaft To The Driven Shaft. In Addition, The Clamping Bolts Are Made Of High-strength Stainless Steel Material To Firmly Clamp The Diaphragm Between The Two Halves. The Tightening Torque Is Strictly Calculated And Controlled To Prevent Loosening During High-speed Operation, Ensuring The Performance And Safety Of The Coupling.

The Performance Advantages Of TAG Diaphragm Couplings Are Significant. It Has High Rigidity And Excellent High-speed Adaptability, With A Transmission Efficiency Of Over 99.86% And Almost No Slip During Operation, Making It Very Suitable For Medium To High Speed And High-power Transmission Scenarios. This Coupling Has The Characteristic Of Zero Rotational Clearance, Which Can Effectively Protect The Shaft And Other Rotating Components And Reduce Operational Wear. It Has A Wide Temperature Resistance Range And Can Work Normally In Extreme Temperature Environments Ranging From -80 ℃ To+300 ℃. At The Same Time, It Has Good Corrosion Resistance And Can Easily Cope With Various Harsh Working Conditions Without Lubrication, Basically Maintenance Free. In Practical Applications, TAG Diaphragm Couplings Are Commonly Used In Precision Mechanical Equipment Such As Machine Tools, Centrifuges, And Power Testing Equipment That Require Extremely High Transmission Accuracy And Stability, As Well As Industrial Equipment Such As Steam Turbines And Compressors That Operate At High Speeds And High Power, Providing Solid Guarantees For The Stable And Efficient Operation Of These Equipment.
