Products Description

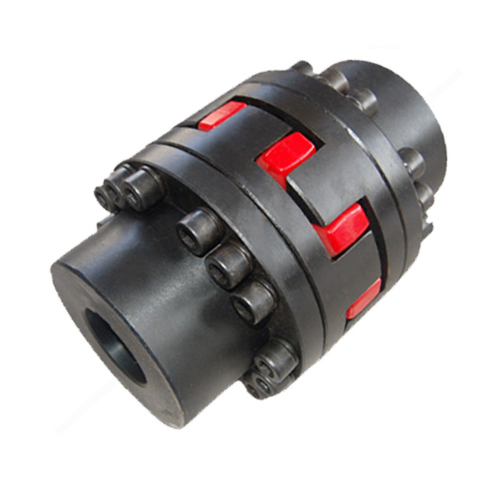

TS-SFStar Shaped CouplingIt Is A Compact And Adaptable Transmission Component Suitable For Power Transmission Scenarios With Low To Medium Torque.
Structurally, It Consists Of Two Metal Half Couplings And A Star Shaped Elastic Body In The Middle. Half Couplings Are Often Made Of High-quality Steel Or Aluminum Alloy, With Connecting Holes That Match The Star Shaped Elastic Body; Star Shaped Elastomers Are Usually Made Of Polyurethane Material, And The Convex Teeth Distributed In A Star Shape Mesh Precisely With The Grooves Of The Half Coupling, Transmitting Torque And Compensating Displacement Through Elastic Deformation. No Keyway Is Required During Installation, And The Connection Is Achieved Through The Interference Fit Between The Elastic Body And The Half Coupling, Making Disassembly And Assembly Convenient.
In Terms Of Performance, Star Shaped Elastomers Have Good Buffering And Shock Absorption Effects, Can Absorb Vibrations And Impacts, And Protect Equipment Shaft Systems. It Can Compensate For Certain Axial, Radial, And Angular Deviations And Make Up For Installation Errors. High Transmission Efficiency, No Obvious Noise During Operation, Temperature Resistance Range -40 ℃~80 ℃, Suitable For General Industrial Environments.
In Terms Of Application, It Is Widely Used In The Transmission System Of General Machinery Such As Textile Machinery, Printing Equipment, Conveying Machinery, Fans And Water Pumps, Especially Suitable For Medium And Low-speed Equipment That Requires Smooth Operation. It Is A Practical Choice That Balances Cost And Reliability.
