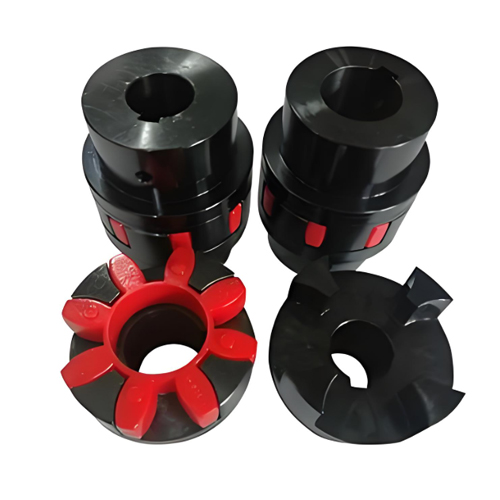

LX TypeStar Shaped Elastic CouplingIt Is A Universal Component Commonly Used In Low To Medium Torque Transmission, With A Structure And Performance Design That Balances Practicality And Reliability.

Structurally, It Consists Of Two Cast Iron Or Cast Steel Half Couplings And A Star Shaped Elastic Body In The Middle. The Half Coupling Is Equipped With Uniformly Distributed Grooves, Forming A Meshing Structure With The Convex Teeth Of The Star Shaped Elastic Body; Elastomers Are Often Made Of Polyurethane Or Nitrile Rubber Materials, With A Star Shaped Protrusion Design To Ensure A Tight Fit With The Half Coupling. Torque Can Be Transmitted Without The Need For Key Connections, And Can Be Easily Disassembled And Assembled By Tightening With Bolts During Installation.

In Terms Of Performance, Elastomers Have Good Elastic Deformation Ability, Can Compensate For Axial, Radial, And Angular Deviations, Absorb Vibration Impacts, And Reduce Equipment Operating Noise. Stable Transmission Efficiency, Suitable For Working Conditions With A Speed Of ≤ 3000r/min, Operating Temperature Range Of -30 ℃~80 ℃, And Able To Adapt To Temperature Changes In General Industrial Environments. Compared To The TS-SF Series, Its Half Coupling Material Focuses More On The Economy Of Cast Iron And Has A Slightly Wider Range Of Load-bearing Torque.

In Terms Of Application, It Is Widely Suitable For General Machinery Such As Agricultural Machinery, Mining Equipment, Ventilation Fans, Water Pumps, Etc., Especially For Transmission Systems That Are Cost Sensitive And Require Certain Buffering Performance. It Is A Cost-effective Connection Solution In Industrial Production.
