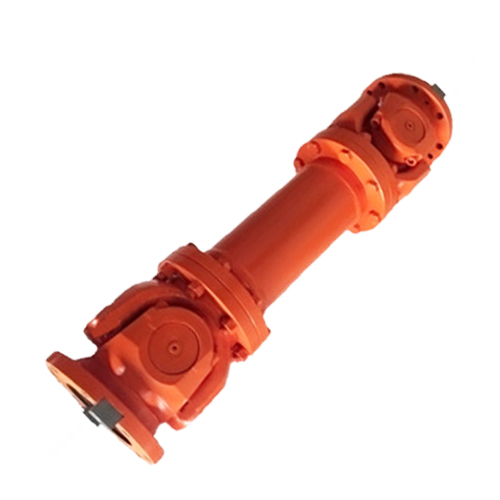

SWP-D Type Non Telescopic Long Universal JointIt Is A Key Component In The Field Of Industrial Power Transmission To Meet The Complex Shaft Connection Requirements, And Is Widely Used In The Transmission System Of Heavy Machinery Equipment.

From A Structural Perspective, It Mainly Consists Of Fork Heads, Cross Shafts, And Bearings. The Fork Head Is Forged From High-strength Alloy Steel And Undergoes Precision Machining, Possessing Excellent Strength And Toughness, And Can Easily Withstand Heavy Loads. The Cross Shaft And Fork Head Are Connected By High-precision Bearings, Forming A Flexible Rotating Cross Structure. This Design Allows For A Certain Angle Between The Two Axes. Generally, The Axis Angle Is ≤ 15 °, Which Can Effectively Adapt To The Spatial Position Changes Of Different Axes. It Is Worth Noting That The SWP-D Type Does Not Have A Telescopic Structure, And Its Axial Length Is Fixed, Making It Suitable For Working Conditions With Low Requirements For Axial Displacement But High Requirements For Angle Compensation.

In Terms Of Performance, The Coupling Performs Excellently. It Has A High Transmission Efficiency, Usually Reaching Over 98%, And Can Stably Transmit Power. Strong Torque Carrying Capacity, Some Large-scale Products Can Even Transmit Torque Of Up To Thousands Of Newton Meters, Meeting The Needs Of High-power Equipment. The Working Speed Range Is Moderate And Can Meet The Operational Requirements Of Most Industrial Equipment. In Order To Reduce Wear, It Is Necessary To Regularly Add Lubricating Grease To Bearings And Other Parts, With A Working Temperature Range Of Approximately -20 ℃ -100 ℃ And A Certain Degree Of Impact Resistance.

In Application Scenarios, SWP-D Type Non Expandable Long Universal Joint Is Commonly Used In Large-scale Steel Rolling Equipment In The Metallurgical Industry, Which Can Operate Stably Under Harsh Working Conditions; In Mining Machinery Such As Crushers And Ball Mills, Their High Load-bearing Capacity Can Also Ensure Reliable Power Transmission; In Addition, It Also Plays A Key Role In Lifting And Transportation Machinery As Well As Some Large Construction Machinery, Providing Guarantees For The Efficient Operation Of Equipment.
