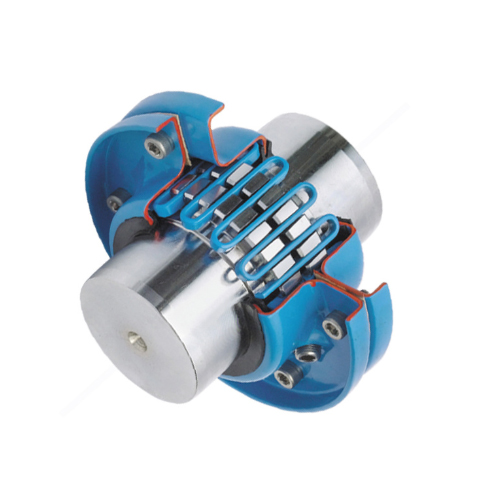

JSBSerpentine Spring CouplingIt Is An Enhanced Transmission Component Designed For Harsh Working Conditions, With Strengthened Wear And Impact Resistance Based On JS. The Half Coupling Is Made Of ZG35CrMo Cast Steel, Which Has Undergone Overall Quenching And Tempering Treatment, With A Tensile Strength Of Over 800MPa. The Tooth Groove Surface Is Welded With Wear-resistant Alloy, Suitable For Environments With High Dust And Particle Impact.

The Snake Shaped Spring Is Made Of 65Mn Spring Steel And Undergoes Isothermal Quenching Treatment. Its Elastic Limit Is Increased By 20% Compared To JS Type. The Cross-section Is Designed In A Rectangular Shape, Increasing The Contact Area With The Tooth Groove. The Torque Transmission Range Is Extended To 1000~300000N · M, And The Allowable Speed Is 3000~500r/min. It Can Compensate For Axial (≤ 15mm), Radial (≤ 0.8mm), And Angular (≤ 2 °) Deviations.

The Shell Is Made Of Cast Steel Material, Equipped With A Double Lip Skeleton Oil Seal And Dust Cover, With A Protection Level Of IP65, Which Can Resist The Invasion Of Dust And Splashing Liquids. Working Temperature -30 ℃~180 ℃, Suitable For Heavy-duty Equipment Such As Mining Crushers, Metallurgical Rolling Mills, And Heavy-duty Conveyors. During Installation, It Is Necessary To Apply High-temperature Grease And Regularly Check For Spring Deformation And Tooth Groove Wear, Which Is A Reliable Choice For Strong Impact And High Pollution Conditions.
